Ultrasonic Flaw Detectors: Innovations for Detecting Subsurface Defects

Ultrasonic flaw detectors have revolutionized the field of non-destructive testing (NDT) by providing an efficient and accurate means of detecting subsurface defects in various materials. This article explores the innovations and advancements in ultrasonic flaw detectors, highlighting their crucial role in ensuring the structural integrity and reliability of critical components and structures.

Introduction:

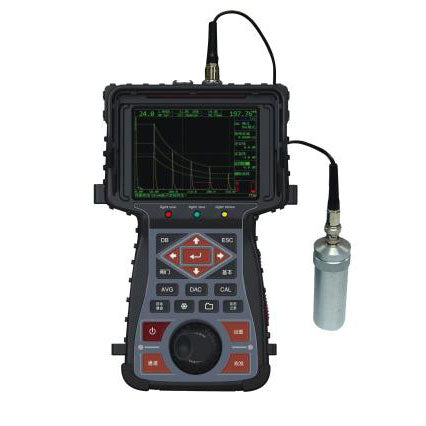

In industries such as manufacturing, aerospace, automotive, and construction, ensuring the safety and reliability of components and structures is of paramount importance. Subsurface defects, such as cracks, voids, inclusions, and disbonds, can compromise the structural integrity and lead to catastrophic failures. Traditional inspection methods often involve destructive testing, which is time-consuming and costly. However, the emergence of ultrasonic flaw detectors has significantly transformed the inspection process by offering non-destructive and accurate evaluation of materials.ultrasonic flaw detector

Ultrasonic Pulse-Echo Technique:

The ultrasonic pulse-echo technique is one of the key innovations in flaw detection. In this method, a transducer generates high-frequency sound waves that penetrate the material under inspection. When these waves encounter a defect or boundary between materials, they reflect back to the transducer. By measuring the time taken for the reflected signal to return, the depth and location of subsurface defects can be precisely determined. This technique provides valuable information about the size, shape, and orientation of defects, aiding engineers in assessing the severity of flaws and making informed decisions on repair or replacement.

Phased Array Ultrasonic Testing (PAUT):

Phased array ultrasonic testing is another groundbreaking innovation in flaw detection. PAUT employs multiple small transducer elements that can be electronically controlled to produce complex beam patterns. By adjusting the timing and intensity of individual elements, the ultrasonic beam can be steered and focused at specific angles, enabling the inspection of complex geometries and critical components. PAUT offers high-resolution imaging and improved defect characterization, making it particularly effective for aerospace and advanced materials inspection.

Time-of-Flight Diffraction (TOFD):

Time-of-flight diffraction is a technique that excels at detecting small cracks and flaws in welds and thick-section materials. TOFD utilizes two transducers, with one emitting ultrasonic waves and the other receiving diffraction signals caused by defects. By analyzing the diffraction patterns, the size and location of the defect can be accurately determined. TOFD is highly sensitive and capable of detecting even minute defects, making it an essential tool for weld inspection and quality assurance in critical applications.

ultrasonic flaw detector

Conclusion:

Ultrasonic flaw detectors have become indispensable tools in modern industrial applications, providing rapid, accurate, and non-destructive evaluation of materials. The continuous innovations in ultrasonic flaw detection techniques, such as pulse-echo, phased array ultrasonic testing, and time-of-flight diffraction, have revolutionized the field of non-destructive testing, ensuring the safety and reliability of critical components and structures. As technology advances further, we can expect even more sophisticated and efficient ultrasonic flaw detectors to drive progress in various industries and enhance quality assurance processes.

Ultrasonic flaw detector
